แผงโซล่าเซลล์ชนิดโมโน 100วัตต์_ Solarpanel monocystalline 100W
Features
1.Aesthetic appearance with excellent efficiency based on innovative photovoltaic technologies
3.Strong frame, passing mechanical load test of 5400Pa, instead of the normal 2400Pa to withstand heavier snow load and higher wind-pressure
Warranties
1.10 years limited product warranty
2.15 years at 90% of the minimal rated power output
3.25 years at 80% of the minimal rated power output
100w panel solar 's parameters
ITEM NO.:
|
Mono 125*125 cell ,36pcs . Power range from 80Wp-100Wp
|
||||||||
Maximum Power(W)
|
80
|
85
|
90
|
95
|
100
|
|
|
|
|
Optimum Power Voltage(Vmp)
|
17.81
|
17.89
|
17.94
|
17.99
|
18.06
|
|
|
|
|
Optimum Operatige Current(Imp)
|
4.78
|
4.91
|
5.12
|
5.35
|
5.59
|
|
|
|
|
Open Circuit Voltage(Voc)
|
21.98
|
22.05
|
22.14
|
22.28
|
22.45
|
|
|
|
|
Short Circuit Current(Isc)
|
4.95 | 5.15 |
5.36
|
5.65
|
5.84
|
|
|
|
|
Solar Cell:
|
125*125 Mono
|
||||||||
Number of Cell(pcs)
|
4*9
|
||||||||
Brand Name of Solar Cells
|
JA Cell, Bluesun Cell
|
||||||||
Size of Module(mm)
|
1580*808*35
|
||||||||
Caple & Connector Type
|
Pass the TUV Certificate
|
||||||||
Frame(Material Corners,etc.)
|
Aluminium-alloy
|
||||||||
Backing (Brand Type)
|
TPT
|
||||||||
Cell Efficiency for 100W(%)
|
15.8%
|
||||||||
Weight Per Piece(KG)
|
12.0KG
|
||||||||
FF (%)
|
70-76%
|
||||||||
Junction Box Type
|
Pass the TUV Certificate
|
||||||||
Tolerance Wattage(e.g.+/-5%)
|
0~+3%
|
||||||||
Front Glass Thikness(mm)
|
3.2
|
||||||||
Temperature Coefficients of Isc(%)
|
+0.04
|
||||||||
Temperature Coefficients of Voc(%)
|
-0.38
|
||||||||
Temperature Coefficients of Pm(%)
|
-0.47
|
||||||||
Temperature Coefficients of Im(%)
|
+0.04
|
||||||||
Temperature Coefficients of Vm(%)
|
-0.38
|
||||||||
Temperature Range
|
-40°C to +85°C
|
||||||||
Surface Maximum Load Capacity
|
2400Pa
|
||||||||
Allowable Hail Load
|
23m/s ,7.53g
|
||||||||
Bypass Diode Rating(A)
|
12
|
||||||||
Warranty
|
100% of 10 years,80% of 25 years.
|
||||||||
Standard Test Conditions
|
AM1.5 1000W/m² 25 +/-2°C
|
||||||||
Packing
|
carton or pallet | ||||||||
1*20'
|
25 Pallets / 450pcs
|
||||||||
1*40'STD
|
25 Pallets / 100pcs
|

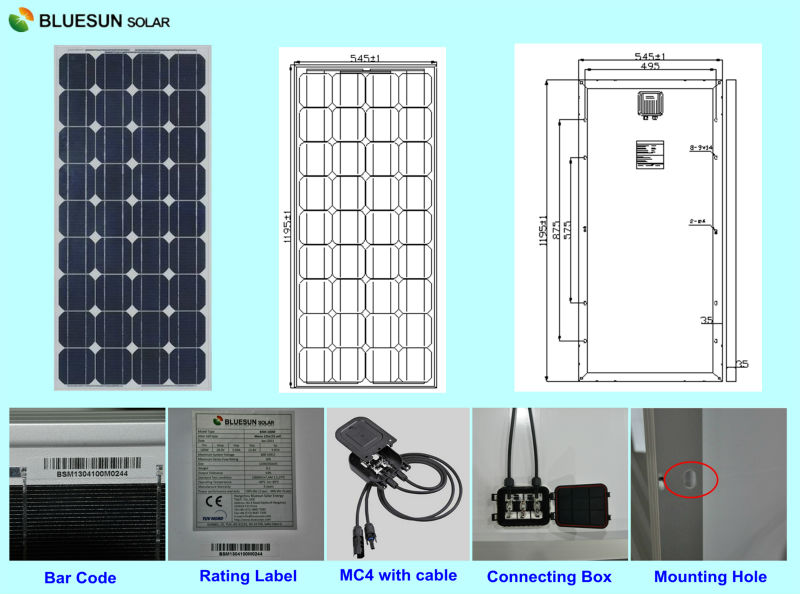

100w panel solar 's Picture
