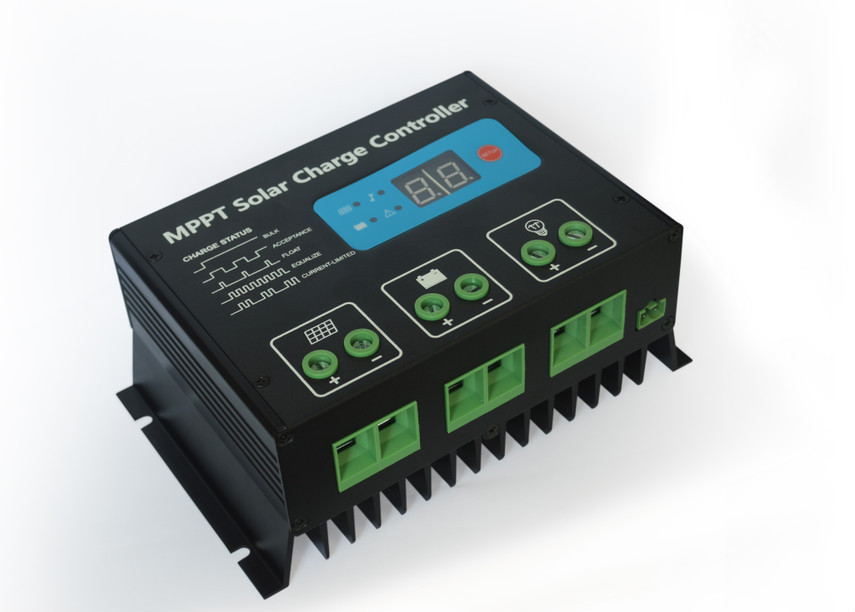

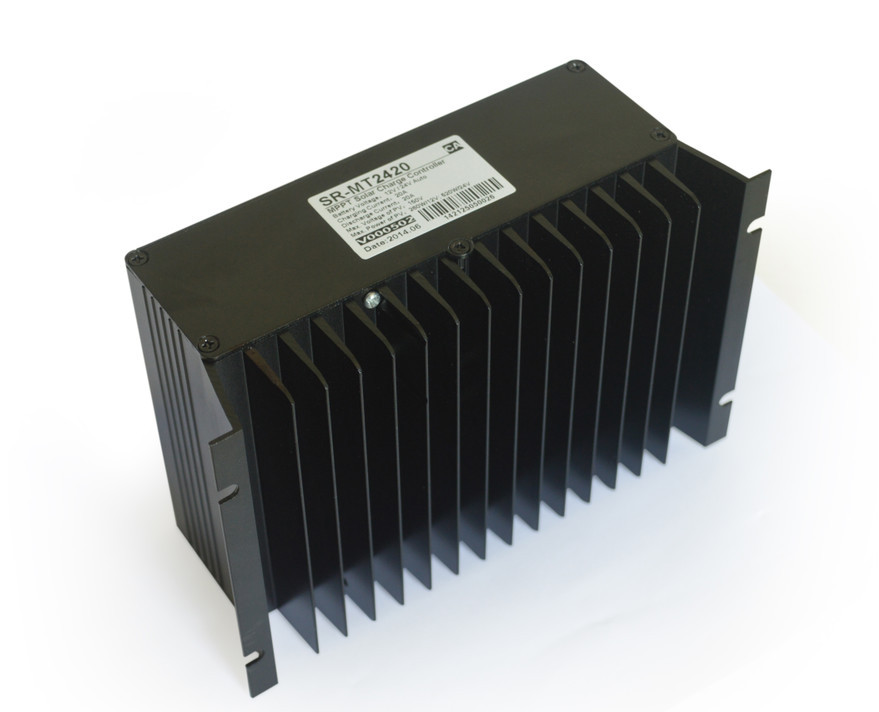

10A MPPT Solar Charge Controller 12V/24V SR-MT,High Efficiency MPPT Charge Controller
Features:
1. Mini size, high power density.
2. Various load control methods.
3. IP65 waterproof degree, metal shell.
4. Various system protection function.
5. Suitable use for home system and LED light.
6. The MPPT efficiency could reach up to 99.95%.
7. The energy conversion efficiency reach up to 97%.
8. The charging efficiency is 15%~20% higher than PWM mode.
9. With temperature compensation function to improve the life of the battery
10. Four stage charging mode:MPPT-equalizing charge-ascending charge-floating charge.
Electronic Protections:
·PV array short circuit
·Over discharging
·Over charging
·Load overload
·Load short circuit
·PV reverse polarity
·Battery reverse polarity

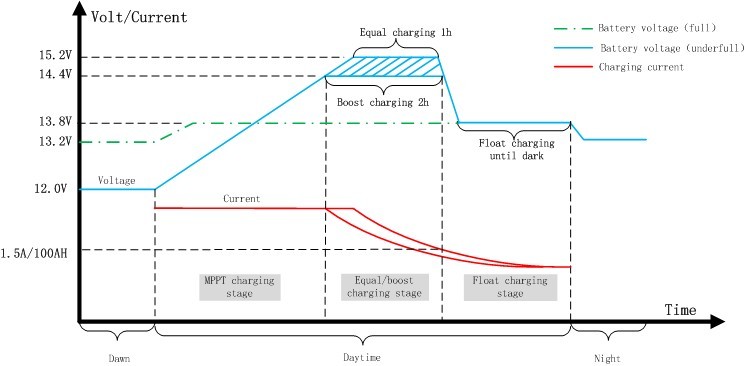

Charging Curve
Parameter
|
Name |
Value |
|
System voltage |
12V/24V Auto |
|
Rated Load current |
10A |
|
Rated charging current |
10A |
|
Max input power(PV) |
130W/12V; 260W/24V |
|
No load loss |
<10mA |
|
Solar input voltage |
< 55V |
|
Transfer efficiency |
≤97% |
|
MPPT tracking efficiency |
>99.92% |
|
Over voltage protection |
16.5V;×2/24V |
|
Charging limited voltage |
15.5V;×2/24V |
|
Equalizing charging voltage |
15.2V;×2/24V(25°C) |
|
Equalizing charging interval |
30 days |
|
Boost charging voltage |
14.4V;×2/24V(25°C) |
|
Float charging voltage |
13.8V;×2/24V(25°C) |
|
Return voltage for over-discharging |
12.5V;×2/24V |
|
over-discharging voltage |
11.0V;×2/24V |
|
Boost voltage charging time |
2hous |
|
Equalizing voltage charging time |
1hour |
|
Temperature compensation |
-4.0mv/°C/2V; |
|
Over Temperature protection |
80°C |
|
Light-control open voltage |
5V |
|
Light-control close voltage |
6V |
|
Lighting control delay |
5min |
|
Working temperature |
-35°C~ +65°C; |
|
Waterproof degree |
IP65 |
|
Weight |
380g |
|
Dimensions |
143×71× 36(mm)(L×W×H) |
Compare with the PWM controller and MPPT controller(the solar panel is analog with 65W)
|
Charging mode |
Controller Model |
Solar panel standard |
Test data |
||||||||
|
Pmp |
VOC |
ISC |
IMP |
VMP |
VMEA |
IMEA |
PMEA |
IBatChg |
Mppt efficiency |
||
|
MPPT |
SR-MT |
65W |
21.82V |
4.304A |
3.824A |
17.00V |
17.194V |
3.77A |
64.82W |
4.82A |
99.72% |
|
PWM |
SR-LR |
65W |
21.82V |
4.304A |
3.824A |
17.00V |
13.062V |
4.22A |
55.06W |
4.16A |
84.7% |
|
Conclusion |
Actual measurement power compare(solar panel): 64.82/55.06 = 1.177 |
||||||||||
|
Actual measurement power compare(battery charging current): 4.82/4.16 = 1.159
|
|||||||||||

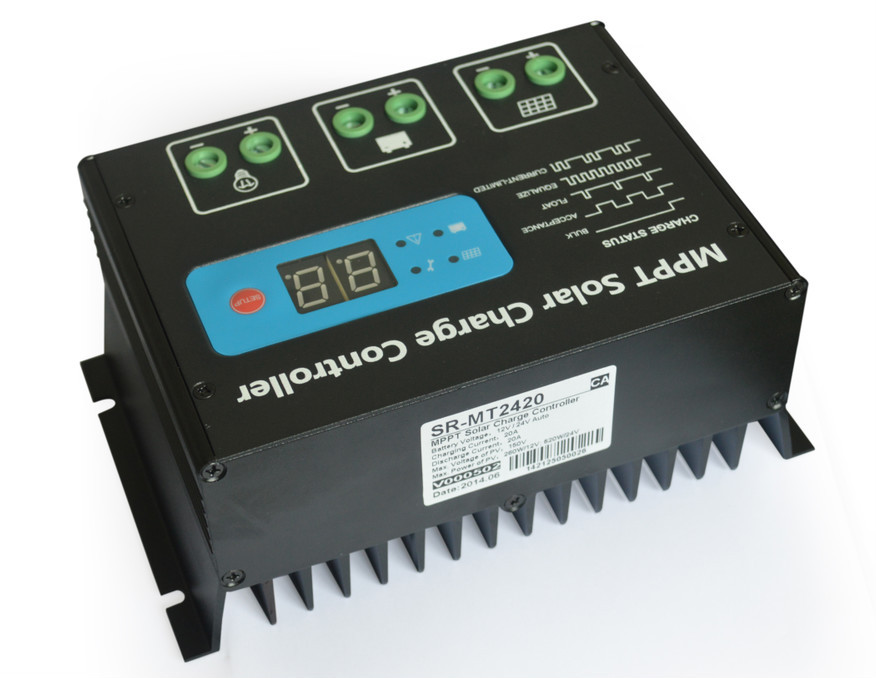

20A MPPT Solar Charge Controller 12V/24V SR-MT,High Efficiency MPPT Charge Controller
Parameters :
MPPT Solar charge controller 45A/60A high quality with LCD& RS485 & RS232 terminal setting by PC
Feature
1. Can be used in all kinds of bad environment with Aluminum frame.
2. Double crest or multi crest tracing technique design, when the solar panel is under shadow or part of the solar panel is damaged, multi crest will turn up in I-V curve, and the controller can still trace the Max. Power Point.
3. Built-in maximum power point tracking algorithm which could promote energy utilization efficiency of pv system. The charging efficiency is 15%~20% higher than PWM mode.
4. Adopting sorts of tracking algorithm to track the best working point of I-V curve promptly and accurately, the MPPT efficiency could reach to 99.9%
5. The use of advanced digital power technology, circuit energy conversion efficiency is as high as 98%
6. Four stage charging order mode: MPPT-equalizing charging-boost charging-float charging.
7. With current-limiting charging mode, when the power of solar panel is over-sized and charging current exceeds the rated current, the controller will lower the charging power, which enables the system to work under the rated charging current.
8. It can communicate with PC by communication wires and cables, read or set controller’s running parameters and monitor the system operation status.
9. The controller can realize networking operation by the link with telecommunication cable.
10. Have the fault code indication; it helps users confirm the system fault
11. 12V/24V/36V/48V auto identified.
12. Support data storage, the storage span can reach 5 years.
13. It can connect with LCD screen monitoring and the controller parameters are amendable.
14. Built-in temperature sensor, when the temperature exceeds the set value, the charging current will lower down followed by the decrease of temperature, so as to control the controller’s temperature rise.
15. With temperature compensation function to adjust the charge and discharge parameters automatically, which can improve battery service life.
16. Various system protection functions. Including over-charge, over-discharge, over-load, over-heat, the battery reverses connection protection and so on.
17. TVS lighting protection.

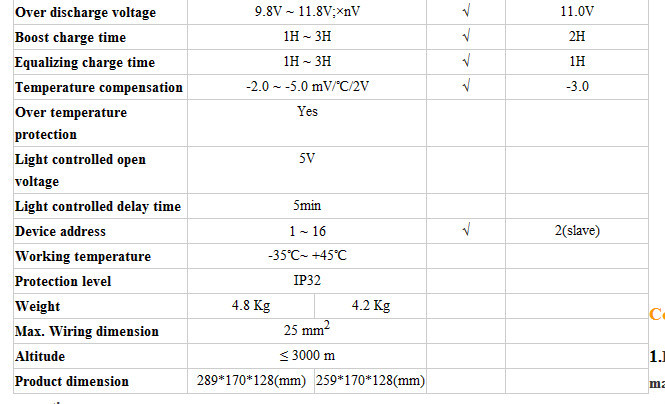

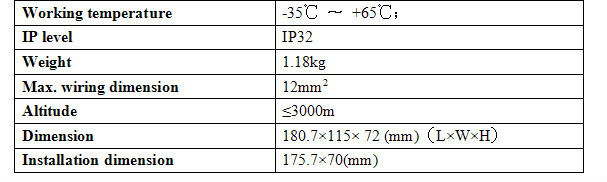

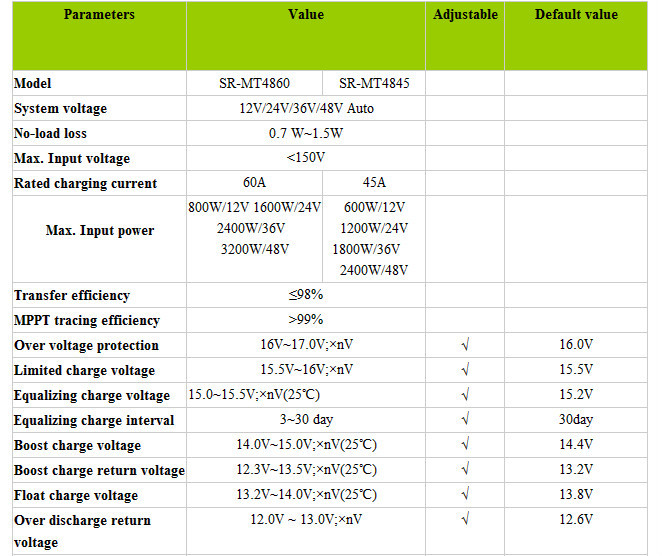

Parameters
Marks: n represents ×2/24V; ×3/36V; ×4/48V.

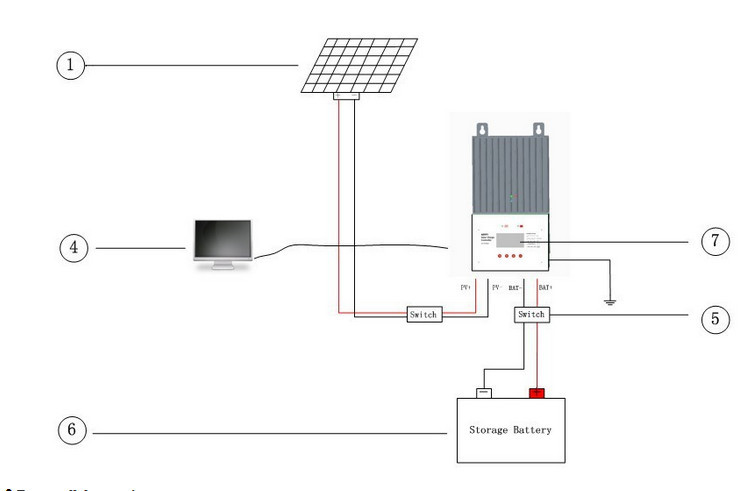

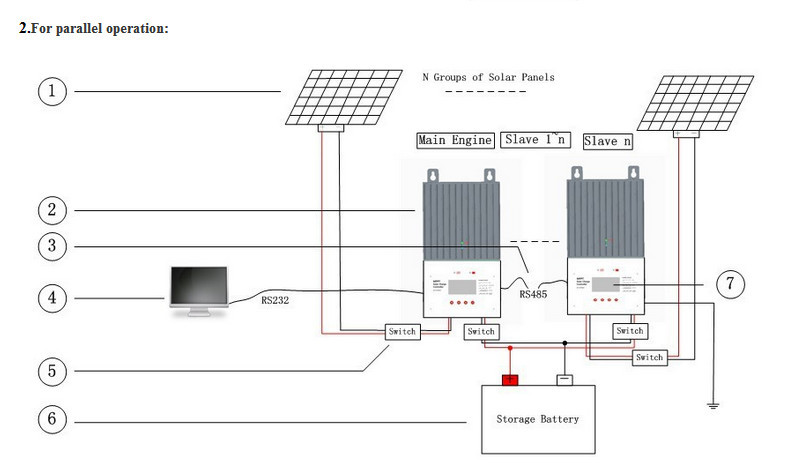

operation:
1---Solar panel.
The power for battery charging.
2---Controller.
Central nervous of the system which controls the overall system.
3---RS485 Telecommunication cable.
Communication line of the controller which is necessary for parallel operation.
4---PC.
It can realize info exchange with the controller by RS232 and can monitor the system timely.
5---Open space.
It can insure the safety of operators.(the switching element is optional).
6---Battery.
A battery pack which compose of battery in series or in parallel.
7---LCD display.
The LCD can display the system status, parameters, records and the set value. (You can just choose one communication way: PC or LCD).
